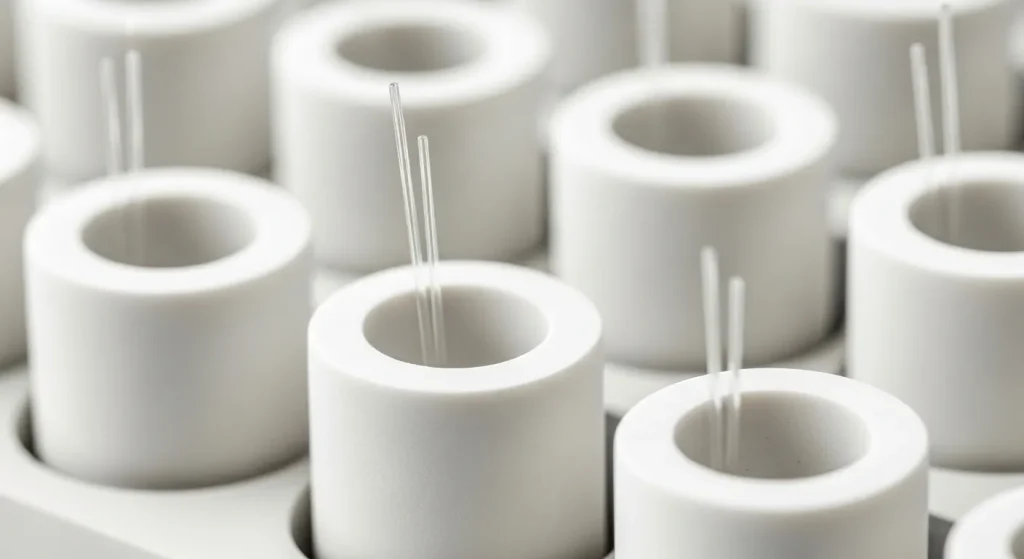

High Precision Ceramic sleeves for Fiber Optics

High precision ceramic sleeves are one of the most critical components in modern fiber optic networks. Though microscopic in size, these small cylinders are the invisible heroes that make high-speed data transmission possible. Their sole purpose is to ensure the near-perfect alignment of two optical fibers. This task demands a level of manufacturing precision that is almost beyond comprehension. In a world built on light, this tiny component is what keeps the light flowing.

The entire performance of a multi-million dollar data center can be compromised by a single, poor-quality connection. The difference between a flawless 400G data stream and a corrupt signal is measured in microns. This article explores the engineering, material science, and metrology behind high precision ceramic sleeves. We will cover why they are essential, how they are made, and the quality metrics that separate a premium component from a point of failure.

The Core Problem: Insertion Loss and Misalignment

To understand the sleeve, one must first understand the problem it solves. Every time two fibers are connected, there is a risk of "insertion loss." This is the loss of optical power, or signal strength, that occurs at the connection point. This loss is measured in decibels (dB).

Insertion loss can be caused by two types of factors:

• Intrinsic Losses: These are unavoidable differences in the fibers themselves, such as a mismatch in core diameter or material.
• Extrinsic Losses: These are mechanical problems at the connection point. This is where the sleeve plays its part. The primary extrinsic loss is "lateral misalignment," also called core offset.

The High-Stakes Math of a Single Micron

Lateral misalignment is the single greatest enemy of a fiber optic connection. This is especially true for single-mode fiber (SMF), which is the standard for long-distance and high-speed communication.

A single-mode fiber has a core that is only 8 to 10 microns (µm) wide. This is smaller than a human blood cell. The light signal travels only within this tiny core. If the core of one fiber is not perfectly aligned with the core of the next, the light "misses" and is lost in the cladding.

The numbers are unforgiving. A lateral offset of just 1 micron can result in a significant 0.5 dB of signal loss. Some experts state that an offset of only 0.3 microns can cause a 0.4 dB loss. When industry standards for "elite" low-loss connectors demand a total loss of 0.2 dB or less, it becomes clear that there is no margin for error. The alignment must be a fraction of a single micron. This is the entire reason high precision ceramic sleeves exist.

The Solution: Why Zirconia (Y-TZP) is the Standard

Early connectors used metal sleeves, typically phosphor bronze. These were a failure. Metal is relatively soft, wears down with repeated use, and corrodes. The wear process also creates microscopic debris that can block the fiber.

The solution was found in advanced technical ceramics. The industry standard material is Yttria-Stabilized Zirconia (Y-TZP). This is not the same as household ceramic. It is an engineering marvel with a unique combination of properties.

Extreme Hardness

Zirconia has a hardness of over 8 on the Mohs scale. This is much harder than steel. It means the sleeve will not scratch or deform. A connector can be mated and un-mated thousands of times, and the sleeve's precise dimensions will remain unchanged.

High Fracture Toughness

This is zirconia's most important trait. Most ceramics are brittle; they shatter. Zirconia, thanks to the yttria, has a high fracture toughness. It can absorb impact and resist cracking. This is vital for the "split sleeve" design.

Sub-Micron Surface Finish

Zirconia can be ground and polished to an almost perfectly smooth surface. This is critical for two reasons. First, a rough inner surface could scratch the fiber ferrule. Second, a smooth surface allows the ferrule to glide in and self-center perfectly.

Thermal Stability

The material has a very low coefficient of thermal expansion. It does not change size with temperature. This is essential for equipment in data centers, which have hot and cold aisles. It is also vital for field equipment that endures freezing winters and hot summers.

Split Sleeves vs. Solid Sleeves

High precision ceramic sleeves come in two primary types. Both are made from zirconia, but they are used in different applications.

Split Ceramic Sleeves

This is the most common type. It is used in fiber optic adapters (couplers). A split sleeve has a single, narrow slit cut down its entire length. This slit is a deliberate feature. It allows the hard sleeve to flex by a tiny, controlled amount. When a ferrule is inserted, the sleeve compresses. This compression creates a gentle, firm grip. It holds the ferrule securely in the exact center. This design allows the sleeve to accommodate tiny variations in the ferrule's outer diameter.

Solid Ceramic Sleeves

A solid sleeve is a rigid, unbroken tube. It has no slit. These sleeves require even greater precision in their inner diameter. They are used inside active optical components. This includes transceivers (like SFP modules) and other optical modules. In this application, the sleeve aligns a fiber stub with the laser or photodiode. Because there is no "flex," the sleeve and the ferrule must be manufactured to an exact matching tolerance.

The Manufacturing of Sub-Micron Precision

Creating a component with tolerances measured in millionths of a meter is a highly controlled, multi-stage process. It is a blend of chemistry and mechanical engineering.

Step 1: From Powder to "Green Part"

The process does not start with a solid block. It starts with an ultra-pure, fine powder of Y-TZP zirconia.

1. Formulation: The zirconia powder is mixed with a proprietary polymer binder. This creates a paste-like feedstock.
2. Injection Molding: The feedstock is heated and injected under high pressure into a precise steel mold. This process, called Ceramic Injection Molding (CIM), forms the part.
3. "Green Part": The molded part is now called a "green part." It is brittle and about 20% larger than the final sleeve. This size difference is to account for shrinkage.

Step 2: Debinding and Sintering

The green part must now be transformed into a hard ceramic.

1. Debinding: The part is put in a low-temperature furnace. This process slowly burns away the polymer binder. It must be done gradually to prevent the part from cracking.
2. Sintering: The part is then moved to a high-temperature furnace, often exceeding 1,500°C. At this temperature, the zirconia particles fuse. The part shrinks, becoming incredibly dense and hard.

Step 3: Achieving Precision (Grinding and Lapping)

After sintering, the sleeve is hard, but its dimensions are not yet precise. This is the most critical and difficult stage.

• Grinding: The outer diameter (OD) of the sleeve is ground to its exact specification. This is done using diamond-coated grinding wheels.
• Lapping: The inner diameter (ID) is the most critical dimension. It is finished using a process called lapping. A "lap" (a precise metal rod) is coated with a diamond slurry. This slurry is a liquid paste containing diamond particles of a specific size (e.g., 6 microns). The lap is spun inside the sleeve, slowly polishing the inner wall.
• Polishing: The lapping process is often followed by a final polishing step. This uses an even finer diamond slurry (e.g., 3 microns or less). This step achieves the mirror-smooth surface finish, which can have a roughness (Ra) of just 0.003 µm.

Advanced techniques like Rotary Ultrasonic Machining (RUM) may also be used. This method combines grinding with high-frequency vibration to machine the hard zirconia.

The Language of Quality: Key Precision Metrics

When sourcing high precision ceramic sleeves, "good" is not a valid measurement. Quality is defined by a language of specific, verifiable metrics. These are measured in a temperature-controlled metrology lab.

Inner Diameter (ID) Precision

This is the most basic metric. For a sleeve designed for a 1.25 mm LC ferrule, the ID must be exact. A high-precision sleeve will have an ID tolerance of ±0.001 mm (±1 µm). This ensures the ferrule fits, but is not too loose.

Concentricity

This is the most important metric for performance. Concentricity is a measure of how centered the inner hole is relative to the outer wall. If the hole is off-center, the fiber core will be off-center. This is lateral misalignment. A top-tier sleeve will have a concentricity of 0.002 mm (2 µm) or less. Premium low-loss sleeves will specify a concentricity of 1 µm or even 0.5 µm.

Roundness (Circularity)

The inner hole must be a perfect circle. Any deviation, or "ovality," will cause the ferrule to sit at an angle. This leads to another type of loss called angular misalignment. High-precision sleeves guarantee a high degree of roundness.

How These Metrics Are Measured

Manufacturers cannot "guess" these tolerances. They use specialized metrology equipment:

• Air Gauges: These are the standard for measuring the ID. A precise volume of air is passed through the sleeve. By measuring the back pressure, the system can calculate the inner diameter with sub-micron accuracy.
• Laser Micrometers: These non-contact tools use a laser beam to scan the outer diameter.
• Video Inspection Systems: High-resolution cameras with advanced software are used to measure concentricity, roundness, and check for any visual defects or micro-cracks.

Global Standards: The Proof of Performance

These standards fall into two categories.

1. Process Quality Standards (ISO 9001)

This is the most fundamental standard. An ISO 9001:2015 certification does not apply to the sleeve itself. It applies to the manufacturer. It proves they have a documented, audited, and reliable Quality Management System (QMS). This is a strong "Trustworthiness" signal. It means the manufacturer has processes to ensure consistency from batch to batch. This is why top suppliers in regions like ceramic sleeves USA and ceramic sleeves Europe all highlight this certification.

2. Performance and Test Standards (IEC/TIA)

These standards do not define how to make a sleeve. They define the performance of the final connection and the methods to test it. High precision ceramic sleeves are the enabling component that allows a connector to meet these strict performance grades.

• IEC 61280-4 and TIA-568-C: These standards define the reference methods for testing insertion loss (attenuation) in an installed network.
• IEC 60793-1-40: This is a specific measurement procedure for attenuation.
• High-Reliability Standards: The most demanding applications, like military and aerospace, have their own standards. MIL-PRF-29504B, for example, is a military specification for fiber optic termini. It requires the use of high-quality zirconia ceramic components to ensure reliability in harsh environments.

A top-tier ceramic sleeves supplier India or a global distributor must be able to provide parts that allow their customers to build assemblies that pass these tests.

Conclusion: The Invisible Foundation of Connectivity

The high precision ceramic sleeve is a perfect example of an enabling technology. It is an unseen component that is the foundation of our digital world. Its performance is not measured in gigabits, but in the sub-micron tolerances that make those gigabits possible.

From the material science of zirconia to the complex manufacturing of lapping and polishing, every step is focused on a single goal: eliminating lateral misalignment. The difference between a high-performance sleeve and an average one is the difference between a 0.2 dB connection and a 1.0 dB failure. In a network, these losses are cumulative. Quality is not just a preference; it is a mathematical necessity.
