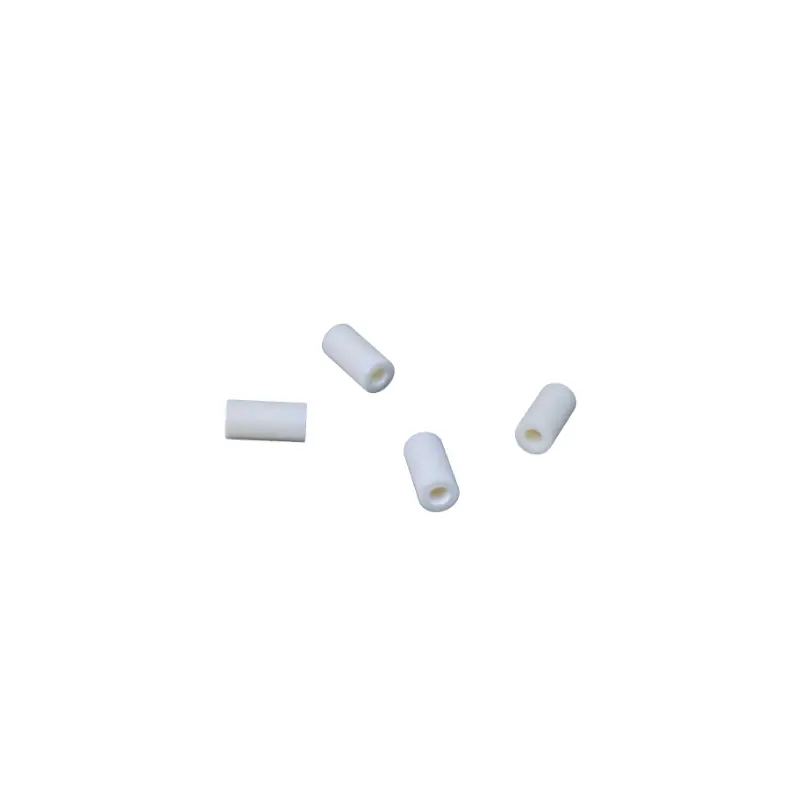

Custom Ceramic Ferrule
Custom Ceramic Ferrules, crafted from high-purity zirconia, are tailored for specialized optical and industrial applications. With flexible dimensions and designs, they ensure precise alignment and exceptional durability for non-standard connectors and prototypes.
- Customizable ID, OD, length, and chamfer
- Supports single-hole, dual-hole, or large bore designs
- Available with step-end tapered end, or metal shank
- Ideal for lasers, sensors, and custom transceivers
- High-purity zirconia with tight tolerance control
Custom Ceramic Ferrule
Custom ceramics ferrule is tailored to meet custom application needs where standard components fall short. Made from high-performance ceramics, this ferrule offers superior hardness, thermal resistance, and chemical stability. It’s often used in fiber optics, metrology, and mechanical assemblies requiring tight tolerances and long-lasting durability. Its custom shape ensures exact fitment and alignment for specific setups. Whether for laser alignment, optical connectors, or precision fixtures, the ceramics non-standard ferrule enhances reliability and performance. Designed for non-standard configurations, it provides flexibility and function in specialized environments across telecommunications, research, and advanced manufacturing.
Technical Specifications
| Outside diameter: | φ0.8~3.5mm |
| Inner Diameter: | φ0.1~1.0mm |
| length: | 3.0~15mm |
| Operating Temperature: | -40℃ ~ +85℃ |
Please refer to our Processing Capability Table for the full range of processing capability.
Advantages of Custom Ceramic Ferrule
- Precision Tailoring to Application Needs: Because they can be custom-machined, ceramic ferrules meet exact specifications for fiber alignment and device integration.
- Exceptional Hardness and Dimensional Stability: As a result, they resist deformation and wear, ensuring long-term alignment accuracy.
- Low Insertion and Return Loss: Therefore, they maintain signal integrity in fiber optic systems, even after repeated connections.
- Thermal and Chemical Resistance: In addition, they perform reliably in environments with fluctuating temperatures or corrosive agents.
- Electrical Insulation: Consequently, they are ideal for hybrid assemblies where optical and electronic isolation is critical.
- Non-Magnetic and Contaminant-Free: This ensures compatibility with sensitive electronic, cleanroom, and medical applications.
Applications of Custom Ceramic Ferrule
- Fiber Optic Communication Systems: For example, they are used in patch cords, connectors, and transceivers for precise single or multi-fiber alignment.
- Medical and Biophotonic Devices: Because of their inertness and precision, they are integrated into imaging, sensing, and diagnostic tools.
- Data Centers and Network Infrastructure: In addition, custom ferrules support high-density fiber connections with low signal loss.
- Aerospace and Military Communications: They provide robust, reliable fiber alignment in environments subject to vibration, temperature extremes, and shock.
- Optical Test and Measurement Equipment: Their precision and stability make them essential in calibration tools and reference connectors.
- Photonic and Laser Systems: Lastly, they ensure beam alignment and coupling accuracy in high-performance optical assemblies.
Applicable Industries
