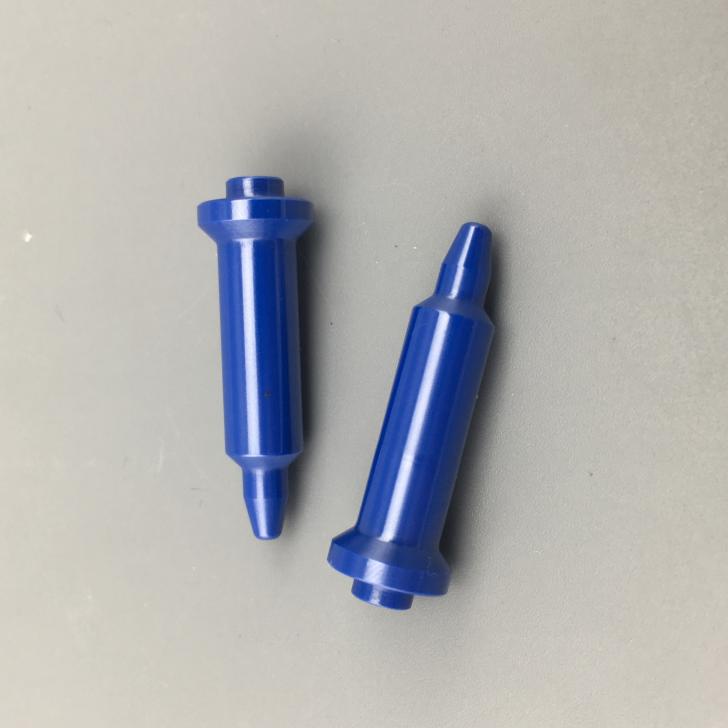

Why Zirconia Ceramic Welding Dowel Pin Improves Joint Strength

Zirconia Ceramic Welding Dowel Pin strengthens joints by enabling precise alignment and stable fixturing during assembly and welding. At UPCERA, we’ve learned that joint quality rises or falls on a few controllable factors: positioning accuracy, resistance to wear, and consistent behavior under heat and corrosion. When these are right, parts meet cleanly, gaps shrink, and loads flow through the joint instead of around it. Scrap drops. Rework slows. Reliability climbs.

Misalignment is a silent cost driver on many lines. It shows up as uneven bead profiles, stress risers, or a fixture that needs constant tweaking. Metal locating pins often deform, pick up magnetism, or react with chemicals over time. Our answer replaces those weak points with zirconia, a stable ceramic interface that holds size, keeps shape, and stays inert even when conditions get harsh. It is also electrically insulating and non-magnetic, which matters in sensitive assemblies and high-voltage areas.

How a Zirconia Ceramic Welding Dowel Pin Drives Stronger Joints

A Zirconia Ceramic Welding Dowel Pin influences joint strength before the first arc strikes. The right pin fixes the stack in position so parts seat the same way, every cycle. That better “fit-up” improves load paths and reduces the risk of porosity or distortion. Because zirconia resists wear, the locating surface does not “grow” over time. Your datum stays true across thousands of insertions and removals.

• Alignment, Fit-Up, and Load Paths

Joint strength depends on how accurately the pieces meet. If alignment drifts, the load concentrates in one area and the joint becomes the fuse. With zirconia, tight tolerances are practical, so the pin guides parts into repeatable contact. Less fighting the setup means more consistent bead geometry and better fatigue performance. For teams pursuing lean goals, a steady, predictable fit-up also compresses cycle time.

• Performance Under Heat, Wear, and Corrosion

Heat cycles challenge any fixture. Zirconia handles these swings without losing geometry. It is hard, wear-resistant, and stable in corrosive atmospheres. The result is a locating surface that keeps its dimension and finish. Add electrical insulation and non-magnetic behavior, and the same pin that improves a welded bracket can also serve in electronics, semiconductor tooling, or cleanroom builds where stray currents and magnetic fields are unwelcome.

UPCERA‘s Solution: Design Details That Matter

At UPCERA, we manufacture ceramic locating solutions for high-precision assemblies where wear resistance, electrical insulation, and temperature stability are essential. Our Zirconia Ceramic Welding Dowel Pin uses the same material system proven in electronics, semiconductor packaging, medical devices, and automated machinery. The goal is simple: hold position so your joint achieves its design strength.

• Hybrid Ceramic-Metal Interfaces

Many fixtures need the stability of ceramic and the practicality of metal mounts. We offer blue zirconia ceramic elements paired with a metal shank, bringing together ceramic geometry control with familiar fastening methods. This hybrid approach suits connectors, precision couplings, and welding jigs that require rigid support and clean alignment. It also simplifies retrofits: swap the locating pin, not the entire tool.

• Custom Geometry and Tight Tolerances

No two lines are identical. Datums, clearances, and insertion profiles vary by product. We collaborate with your team to define pin length, tip form, chamfers, and surface finish so parts home smoothly and repeatably. By machining to tight tolerances, we reduce stack-up error and keep your tolerance budget intact. If your cell is robotic, a precision welding alignment pin built from zirconia maintains accuracy across high cycle counts without the drift that comes from metal wear.

•   High dimensional precision supports repeatable alignment

•   Exceptional wear resistance maintains surface integrity

•   Thermal and chemical stability ensures consistent performance

•   Electrical insulation and non-magnetic behavior protect sensitive builds

•   Long service life reduces fixture changes and downtime

These advantages are not theoretical. They show up as cleaner joints, fewer adjustments, and less time spent chasing variation. For many customers, the move to a zirconia locating pin for welding fixtures pays back by stabilizing the very first step that determines joint strength: accurate, durable positioning.

Adoption Roadmap and ROI

A switch only works when it is painless on the floor. We’ve structured our process to make introduction simple, measurable, and low risk. Start where misalignment costs you the most. Validate with a pilot. Then scale with confidence.

✅  Simple Steps to Integrate

•  Share your current alignment challenges, weld environment, and target tolerances.

•  Confirm geometry, fit, and any metal-mounting needs with our engineers.

•  Run a pilot in the toughest station to confirm repeatability.

•  Track outcomes: fit-up variation, rework, bead consistency, and tool life.

•  Roll out to similar fixtures once the data proves the case.

Because zirconia holds size and finish, you can expect a steadier process window. Many teams also report cleaner changeovers and fewer fixture rebuilds. Over a quarter, that can translate into reduced consumable spend and higher first-pass yield.

Applications and Next Steps (CTA)

You will find the Zirconia Ceramic Welding Dowel Pin wherever alignment, cleanliness, and reliability matter. Precision assembly fixtures benefit from repeatable location during automated or robotic welding. Electronics and semiconductor operations use the material for its clean, non-conductive surface. Medical device manufacturers rely on its stability in cleanrooms. Aerospace and automotive jigs use it to hold accuracy through thermal loads. Optical and laser systems value the low drift in sensitive alignments. In high-temperature or chemical processing, zirconia provides robust positioning where metals degrade.

If you are wrestling with dimensional drift, fixture wear, or inconsistent fit-up, the first fix is often the simplest: stabilize location. Call to Action: Talk with UPCERA about a Zirconia Ceramic Welding Dowel Pin tailored to your fixture. We’ll help you specify dimensions, choose the right ceramic-to-metal configuration, and align procurement with your production cadence. Stronger joints start with better alignment – let’s build that strength into every cycle.
