Multi-Hole Alumina Insulator: Simplifying Wire Management in Next-Gen Electronics

Electronics miniaturization makes it difficult to keep conductors organized and electrically separated in tight spaces. An Alumina Insulator simplifies a previously complex process by reliably insulating conductors. These components can support selected semiconductor, RF, medical-related, and automotive sensor applications where insulation and compact routing are required. The multi-hole Alumina Insulator provides multiple conductors while maintaining separation.

As the market for alumina ceramics expands, due to the demand for advanced materials, the choices made about the components on a platform become more critical to the overall design. The multi-hole Alumina Insulator provides a means to properly organize wires without losing safety margins.

Why Wire Management Matters More Than Ever in 2026

As device footprints have decreased due to increased layer counts, high-density interconnect (HDI) PCBs and system-in-package (SiP) designs have become the norm. As electrical systems become more compact, ceramic insulation components must provide reliable electrical isolation while fitting into increasingly space-constrained assemblies.

In small, compact systems, disorganized leads and wire become an aesthetic issue and introduce multiple problems. These include field concentration risks and reduced effective creepage distance, ultimately resulting in a more complicated assembly and field troubleshooting. An Alumina Insulator is designed to organize wiring in multiple channel paths.

The Multi-Hole Advantage: Organization Meets Insulation

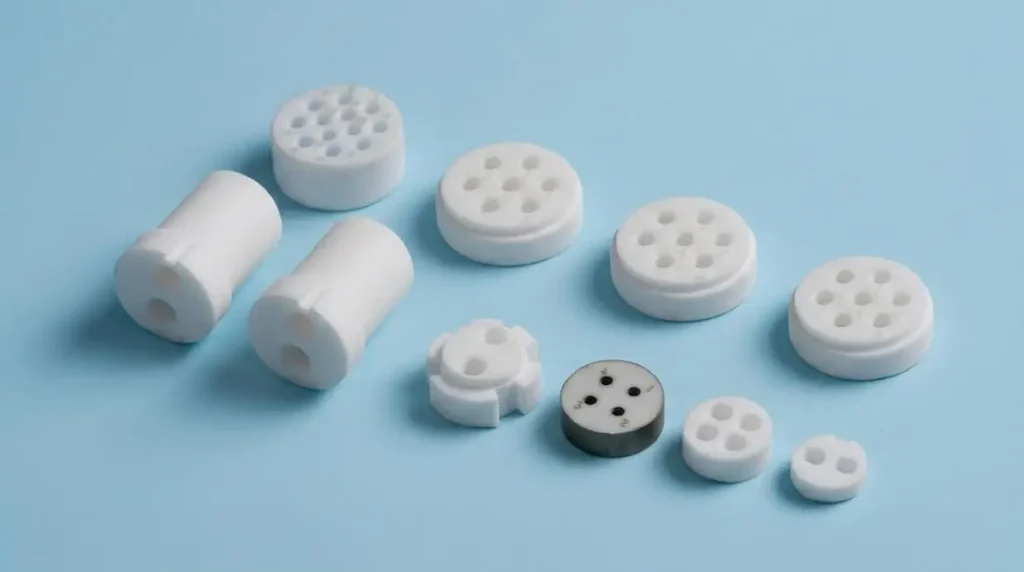

At first glance, a multi-hole Alumina Insulator may appear structurally basic. In reality, this technology is ingeniously powerful, as it can make more of each air channel within a dense packing layout, as a single ceramic body can support multiple individual channels. The multiple independent alumina sections surrounding each hole ensure electrical isolation. A multi-hole Alumina Insulator provides several advantages.

1) Guided Conductor Routing

Each hole helps keep wires, leads, or small cables separated and positioned in crowded assemblies, reducing the risk of contact or routing errors. Through proper design, multiple conductors can be routed through a single insulator, leaving assembly uncomplicated and providing predictable electrical separation.

2) Integrated Creepage Management

Hole spacing and layout can influence creepage distance and electrical isolation performance.. Well-spaced holes create sufficient spacing and separation, helping designers maintain required creepage and clearance distances in compact layouts.

3) Simplified Assembly

The passage of each conductor through the isolated channel controlled the routing of conductors. This simplified assembly and significantly decreased the amount of required rework as the need to untangle wires was eliminated.

4) Compact Footprint

High density systems are limited in the available space and require the use of multiple conductors in as small a volume as possible, necessitating the use of a single insulator body for multiple paths.

What Makes UPCERA's Multi-Hole Alumina Insulators Exceptional

UPCERA can manufacture alumina insulators using high-purity alumina, such as 95%–99% Al₂O₃, depending on application requirements. The manufacturing of multi-hole Alumina Insulator components can then provide both electrical insulation and heat resistance for specific applications with high material purity and high engineering-grade accuracy. Each component is fabricated to tight tolerances.

Precision Equals Predictability

Critical dimensions can be controlled to ±0.01 mm depending on geometry, size, and inspection requirements.. In designs with multiple holes, this accuracy means positions, diameters, and spacing of holes will be the same for each hole, every part, and throughout every production run. This leads to results for assembly that do not require shims, do not require guesses for alignment, and do not create clearance violations.

•Consistent Fit: Each alumina insulator is manufactured according to customer drawings and tolerance requirements, supporting reliable press-fit, stacking, or alignment during assembly.

•Predictable Field Behavior: Gaps and geometries are controlled to help shape electric fields which discourages localized geometric stress.

•Quality verification is simplified with tight dimensional tolerances. Inspecting products that are received is greatly simplified and buyers have confidence parts are receiving the control and meet specs without numerous measurements.

Performance from Material Purity

Applications of multimode insulator using high purity alumina (≥99% Al₂O₃) presents the following attributes:

•High Dielectric Strength – High-purity alumina provides excellent dielectric strength and helps maintain electrical isolation between conductive paths.

•Thermal Stability – High Al₂O₃ insulator is stable and can maintain good stability under suitable high-temperature operating conditions.

•Chemical Inertness – High Al₂O₃ is not prone to corrosion under aggressive chemicals and humid conditions thus reliable for industrial and medical use.

•Mechanical Hardness: Able to withstand cracking, deformation and wear in both static and dynamic applications.

Where Multi-Hole Alumina Insulators Deliver Proven Value

We identify six representative applications where the benefits of multi-hole alumina insulator designs make them the preferred engineering solution.

1) High Voltage Power Equipment

Multi-hole insulators are used in transformers, capacitors, and circuit breakers to keep high voltage leads separated in enclosures where space is limited.

2) Semiconductor Manufacturing Tools

Multi-hole designs are used in cleanroomcompatible designs in plasma processing systems where chamber wall electrical connections do not compromise the integrity of the system.

3) RF and Vacuum Systems

Multi-hole alumina insulator designs provide insulation that RF chambers and plasma tools, where heating and cooling cause dielectric losses, require.

4) Automotive and Aerospace Electronics

To insulate and protect against extreme conditions, designs that use multiple holes are present in automotive and aerospace battery management systems, as well as ignition systems.

5) Industrial Heating Systems

Multi-hole alumina insulation designs are used in furnaces, industrial heaters, and thermocouple assemblies for protection in extreme heat.

Global Compliance That Opens Markets

UPCERA multi-hole alumina insulator components comply with RoHS and REACH. They meet the environmental regulations that lessen the paperwork and expedite the global delivery of goods. Within international supply chains, regulatory built-in compliance reduces management work and can help reduce documentation-related uncertainty in international sourcing. Procurement teams gain confidence knowing that material certifications and traceability documentation are ready for audits in regulated industries.

Such products should come from a supply chain with full traceability, conflict-free, and RoHS compliant, in order to generate a competitive edge in a market saturated with small-scale producers. UPCERA delivers to these emerging expectations, manufacturing components that meet client expectations for technical parameters and compliance with necessary regulations.

Closing Words: Designed for Tomorrow's Assemblies

Growing industrial demand for advanced insulation arises from the need for improved efficiency and tighter integration, and UPCERA is proud to manufacture the multi-hole Alumina Insulator as part of our alumina ceramic line. Whether you face wire and enclosure management challenges in compact, intricate, high-voltage, high-performance systems in power supply and semiconductor devices, or in medical devices or systems in automotive electronics, a well-designed multi-hole Alumina Insulator adds simple, repetitive conductor path routing to your design.

For further information or to obtain a competitive quotation for your project, please contact UPCERA.

[Contact Us for a Quote] | [Request Technical Consultation]

FAQ

Q1：What is a multi-hole Alumina Insulator?

Each of our products is a single piece of ceramic with multiple holes. Each hole can fit a conductor and helps keep conductors physically separated and electrically insulated according to the design requirements.

Q2：What purity level does UPCERA use?

High-purity alumina with a purity of 99%. This results in excellent dielectric strength and allows for thermal stability and chemical resistance.

Q3：What tolerances can UPCERA achieve?

Critical dimensions can be controlled to ±0.01 mm depending on part geometry and inspection requirements. This means that in every production batch, the positions and diameters of holes will be uniform.

Q4：Are these insulators RoHS and REACH compliant?

Yes. RoHS/REACH documentation can be provided based on specific material and order requirements.

Q5：Which applications benefit the most from multi-hole designs?

Insulators for multi-hole designs find use in high-voltage power apparatuses, tools for the semiconductor industry, RF systems, medical devices, automotive electronics, and industrial heaters.
