Zirconia Rod: The Right Choice for Demanding Applications

Zirconia Rod has become an important choice for engineers and buyers who need a material that can perform reliably under wear, load, heat, and chemical exposure. From the perspective of UPCERA as a ceramic manufacturer, this is not only a material discussion. It is also a practical question of how to improve equipment stability, extend service life, and make component selection more precise.

In many industries, the shift toward higher precision and longer-lasting parts is clear. Advanced ceramics are now widely used where metal or general engineering plastics may face limits in wear, insulation, corrosion resistance, or dimensional stability. Zirconia stands out because it combines high strength, high fracture toughness, wear resistance, and low thermal conductivity in one material system.

Why Zirconia Rod Matters in Modern Industry

Industrial parts are becoming smaller, more precise, and more application-specific. At the same time, the operating environment is becoming more demanding. In semiconductor tools, medical systems, precision machinery, and chemical equipment, component failure is often linked to wear, contamination, heat, or instability in repeated motion. Kyocera notes that ceramics are used in semiconductor processing equipment for high precision, low particle generation, heat resistance, and mechanical performance, while medical equipment uses ceramics where insulation, strength, and heat resistance matter.

This is where Zirconia Rod becomes relevant.

•Helps support applications with extremely demanding wear resistance requirements, thereby reducing replacement frequency.

•Possesses excellent mechanical properties, making it particularly valuable for moving and contact components.

•Offers good corrosion resistance, making it suitable for systems operating in chemical environments.

•Capable of maintaining dimensional accuracy—a critical factor for high-precision assemblies.

For buyers, these are not abstract material traits. They translate into more stable equipment performance, lower maintenance pressure, and better long-term value.

What Makes Zirconia Rod a Strong Technical Choice

Zirconia is often selected when a project needs more than hardness alone. Some ceramics are very hard, but they can be more limited under impact or repeated stress. Zirconia is different because it offers a rare balance of hardness, wear resistance, and fracture toughness. Precision Ceramics describes zirconia as combining high hardness, wear resistance, and corrosion resistance while also delivering one of the highest fracture toughness values among ceramic materials. Kyocera similarly states that zirconia has higher strength and fracture toughness than alumina and also provides strong heat insulation due to its low thermal conductivity.

For clients, this means a Zirconia Rod may be a more practical solution when the part must do more than simply remain hard.

Key Performance Benefits Of Zirconia Rod

•High Fracture Toughness

This supports better reliability in parts exposed to load, vibration, or repeated contact.

•Excellent Surface Finish Potential

The fine grain structure of zirconia supports smooth and consistent surface finishes, which can benefit sealing, guiding, and precision interface applications. AZoM points out that this microstructural feature is one reason zirconia can achieve excellent finishing results.

•Low Thermal Conductivity

This feature is advantageous in applications that require reduced heat transfer, especially when equipment performance depends on careful thermal design.

How UPCERA Supports Demanding Zirconia Rod Applications

At UPCERA, we produce high-precision ceramic rods in zirconia as well as alumina, silicon carbide, silicon nitride, and other materials. Our ceramic rods are used in precision machinery, medical equipment, semiconductor manufacturing, and chemical processing, where stable geometry and durable material performance are essential.

Our manufacturing offer is built around what clients actually need in production:

•20+ Years Of Ceramic Manufacturing Experience

This supports more reliable process control and more practical technical communication.

•Factory-Direct Supply With Guaranteed Quality

This helps buyers improve consistency and simplify sourcing.

•Custom Production Available

This is especially useful when standard rod geometry cannot match the application.

•Support For Ceramic-Metal Assemblies And Metallization Services

This provides customers with more options when the project calls for combined material solutions rather than simple standalone ceramic components.

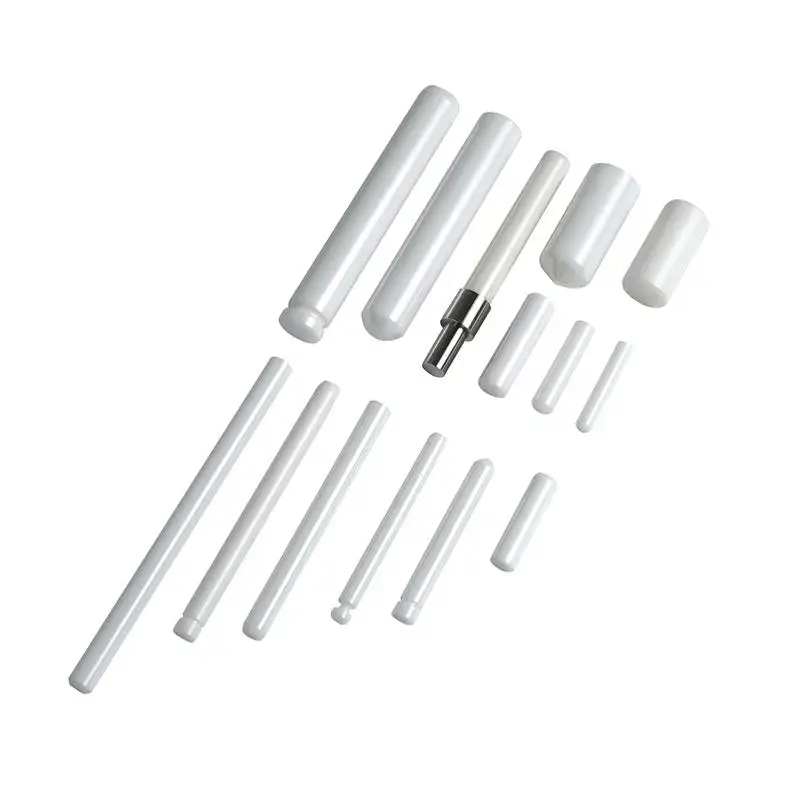

We also manufacture a wide variety of rod forms, including solid rods, hollow rods, stepped rods, threaded rods, locating pins, and plungers. In many high-demand applications, geometry plays a role equal to material performance. A carefully designed rod can enhance alignment accuracy, reduce operating wear, and streamline equipment assembly.

Product Information That Matters to Buyers

For technical buyers, performance claims are only part of the picture. Manufacturing capability and tolerance control are equally important. A ceramic rod is only useful when it can be made to the required dimensions and finish.

UPCERA's ceramic rod capabilities include:

•Length Range For Zirconia Rods: up to 1000 mm

•Outer Diameter Range For Zirconia Rods: up to 50 mm

•Minimum Drilling Capability: ≥ φ0.4 mm

•Thread Diameter: ≥ M2 for zirconia

In terms of precision, we support:

•Outer Diameter Precision

• 1–25 mm: ±0.002 mm
• 20–50 mm: ±0.003 mm

•Length Precision: ±0.005 mm

•Roundness: 0.002 mm

•Concentricity: 0.002 mm

•Straightness: 0.004 mm

•Surface Roughness For Zirconia: Ra 0.03

These figures are important because they directly influence assembly fit, running accuracy, sealing effect, and motion control. In bearings, seals, probes, and insulation supports, precision is not a secondary advantage. It is part of the component's function.

Where Zirconia Rod Creates Practical Value

A well-made Zirconia Rod can support many application targets at once. In precision machinery, zirconia rods can help control wear and maintain stable motion over time. Zirconia rods can create value across multiple industries. In precision machinery, they help limit wear and promote stable movement. The semiconductor equipment, advanced ceramics are chosen for their dimensional precision, high rigidity, and low-particle characteristics in critical process environments. In medical equipment, ceramics are used where stable performance, insulation properties, and heat resistance are required.

From a buyer's point of view, the main benefits may include:

•Longer working life for components subject to friction and wear

•More reliable system performance in precision applications

•Better durability in corrosive or chemically active environments

•Cleaner and more controlled surface behavior in technical uses

•Expanded design options through customization and integrated assembly support

As a result, zirconia rods are widely considered for bearings, seals, probes, insulation supports, locating elements, and plungers. The goal is not only to replace metal. The goal is to choose a material that fits the real operating challenge more effectively.

Choosing the Right Zirconia Rod Partner

Selecting the right ceramic rod supplier should involve more than a material name on a specification sheet. Clients should examine whether the manufacturer can support custom geometry, tolerance control, surface finish, assembly capability, and consistent production quality. These factors often determine whether the final part performs as expected in real service.

At UPCERA, we see Zirconia Rod as something beyond just a product. It's a real-world engineering solution, built for tough jobs. We're here to help our clients transform their material needs into successful, finished parts. We do this through careful specifications, precise manufacturing, and support tailored to the specific application.

CTA: If your project requires a Zirconia Rod for precision machinery, semiconductor equipment, medical systems, or chemical processing, contact UPCERA to discuss your drawing, tolerance target, surface requirement, and assembly needs. The right ceramic rod can do more than meet a dimension. It can improve the performance and durability of the whole system.
